$21.99
3/4" x 1/2" Performance Series Rod End - KMX12-8
1/2" Hole x 3/4" Shank Heim Joint

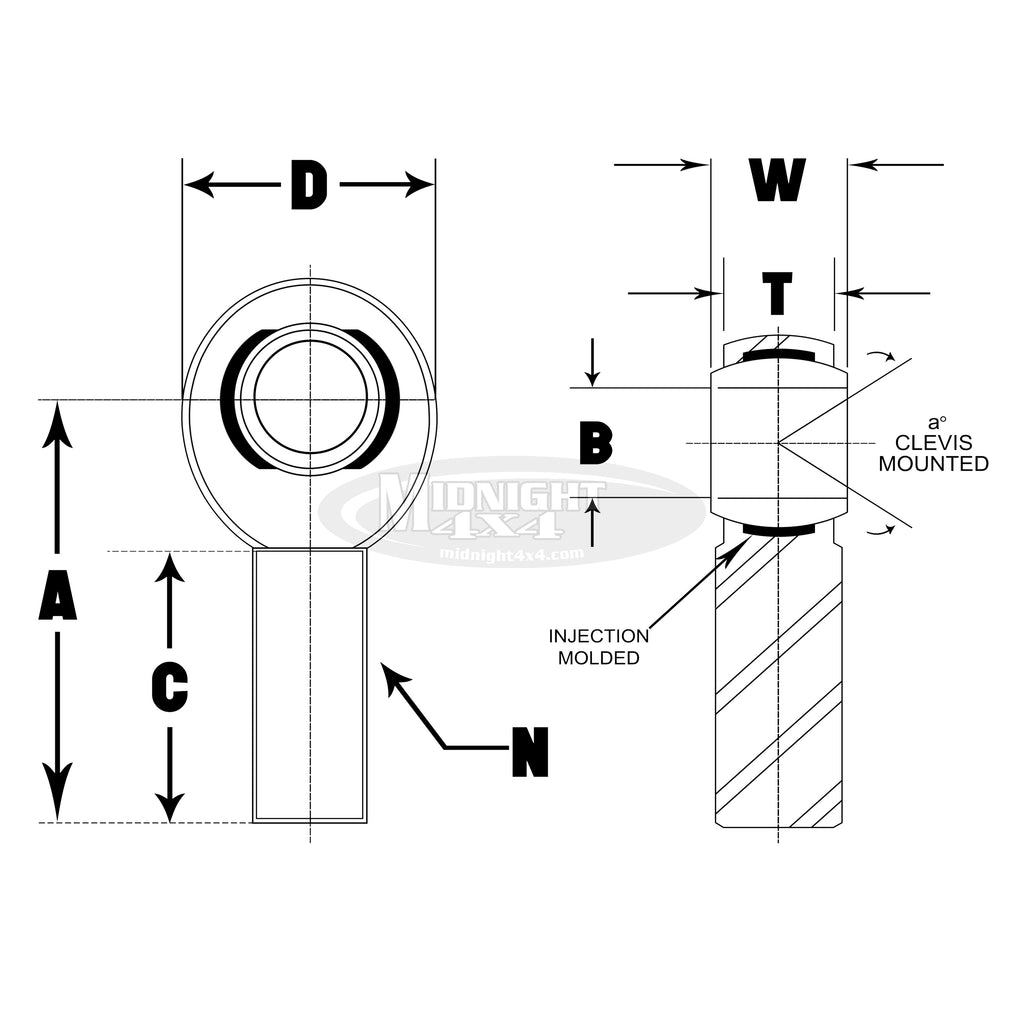

B: .500 D: 1.750 W: .750 T: .562 A: 2.875 N: 3/4-16 C:1.750
Ball Diameter: 1.125
a* Misalignment Angle: 14
Static Radial Load (lbs): 23, 256
Approx Weight (lbs): .57
BALL
- 52100 STEEL
- Rc 56 MIN HARD
- HARD CHROME PLATED
BODY
- STEEL ALLOY-HEAT TREATED
- CHROME PLATED
RACE
- NYLON 10 OR EQUIVALENT
**Sold Individually
All products are generally stocked on shelves. If amount ordered is in excess of stock additional processing time may apply.
