5/8" Race Series Rod End - JMX10T

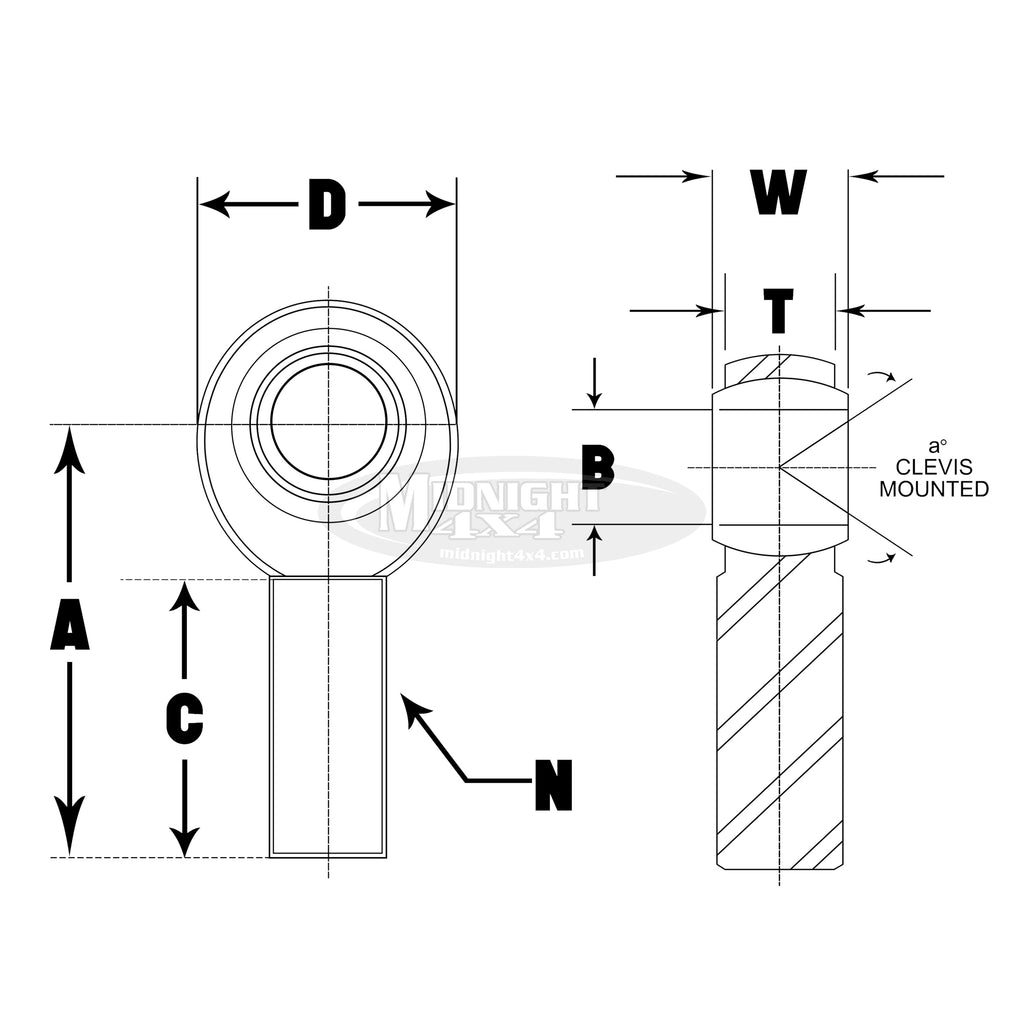

JMX10T, 3-Piece Rod End, 5/8" , Midnight 4x4, Heim Drawing
$32.99

5/8" Race Series Rod End - JMX10T

5/8" Hole x 5/8" Shank Heim Joint

B: .625      D: 1.500      W: .750      T: .562      A: 2.625               N: 5/8-18      C: 1.625

Ball Diameter: 1.125

a* Misalignment Angle: 16

Static Radial Load (lbs): 17,959

Approx. Weight (lbs): .38

BALL

  • 52100 STEEL
  • Rc 56 MIN HARD
  • HARD CHROME PLATED



BODY

  • STEEL ALLOY-HEAT TREATED
  • ZINC PLATED
  • CHROMATE TREATED



RACE

  • STEEL ALLOY-HEAT TREATED
  • ZINC PLATED
  • CHROMATE TREATED



LINER

  • PTFE FABRIC



**Sold Individually

All products are generally stocked on shelves. If amount ordered is in excess of stock additional processing time may apply.
