5/8" x 1/2" Race Series Rod End - RSMX8T
5/8" x 1/2" Race Series Rod End - RSMX8T

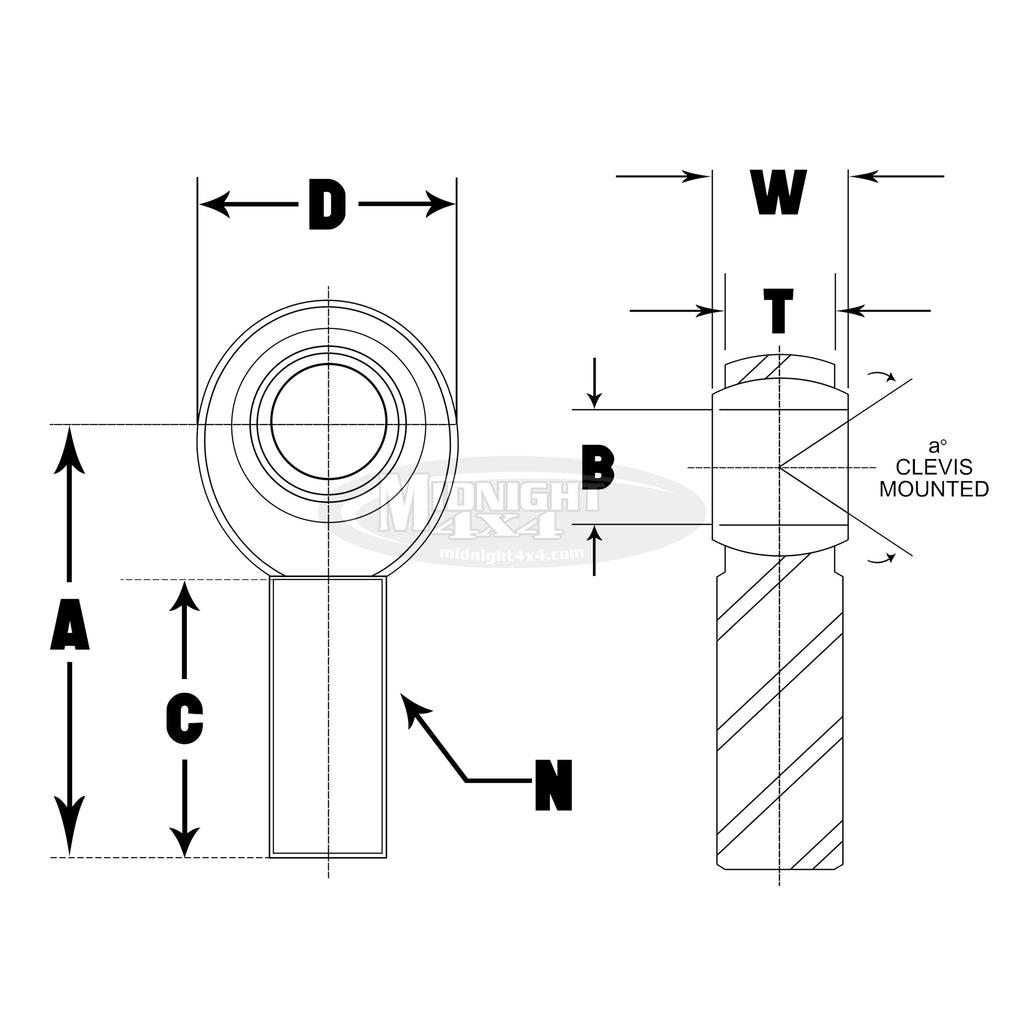

RSMX8T, 3-Piece Rod End, 1/2" , Midnight 4x4, Heim Drawing
$29.99

5/8" x 1/2" Race Series Rod End - RSMX8T

1/2" Hole x 5/8" Shank Heim Joint

B: .500      D: 1.500      W: .625      T: .500      A: 2.625               N: 5/8-18      C: 1.625

Ball Diameter: .937

a* Misalignment Angle: 10

Static Radial Load (lbs): 31,420

Approx. Weight (lbs): .382



BALL

  • 52100 STEEL
  • Rc 56 MIN HARD
  • HARD CHROME PLATED



BODY

  • STEEL ALLOY-HEAT TREATED
  • ZINC PLATED
  • CHROMATE TREATED



RACE

  • STEEL ALLOY-HEAT TREATED
  • ZINC PLATED
  • CHROMATE TREATED



LINER

  • PTFE FABRIC



**Sold Individually

All products are generally stocked on shelves. If amount ordered is in excess of stock, longer processing time may apply.
